MatchingPursuit: An R Package Package for Sparse Time-Series Decomposition Using Matching Pursuit and Orthogonal Matching Pursuit

Purpose

Sparse signal decomposition framework for one- and multi-channel biomedical and general time series data using the Matching Pursuit and Orthogonal Matching Pursuit algorithms.

Supported features:

Executing the Matching Pursuit algorithm
- optimized C++ backend, Enhanced Matching Pursuit Implementation (EMPI)
- reference R implementation (MP)
Executing the Orthogonal Matching Pursuit (OMP) algorithm
Gabor dictionary support via XML-based atom definitions
Support for biomedical signal formats
- EDF / EDF+ file support
- WFDB records support
- Performing three standard EEG montages (bipolar, referential, and average)
Plotting time–frequency maps based on MP, OMP and EMPI results
Pre-filtering signals using notch, low-pass, high-pass, band-pass, and band-stop filters

Note:

The terms MP-R and OMP-R with a suffix R refer to the corresponding backends rather than to algorithms. The terms MP and OMP without a suffix R refer to the corresponding algorithms rather than to a specific implementation.

Installation

You can install the released version from CRAN with:

install.packages("MatchingPursuit")

Quick start

MP-R and OMP-R

The typical workflow consists of four steps:

Read a signal.
Read a dictionary definition.
Select the most relevant atoms.
Perform MP or OMP decomposition.

or, equivalently, execute the complete pipeline using a single function mp_omp_pipeline(). After executing you can plot time-frequency map.

sig_file <- system.file("extdata", "sample1.csv", package = "MatchingPursuit")
xml_file <- system.file("extdata", "sample1_dict.xml", package = "MatchingPursuit")

out <- mp_omp_pipeline(
  mode = "mp",                # or "omp" for Orthogonal Matching Pursuit
  sig_file = sig_file,
  col_names_in_csv = FALSE,
  xml_file = xml_file,
  topk = 5000,
  n_nonzero_coefs = 50,
  verbose = TRUE
)

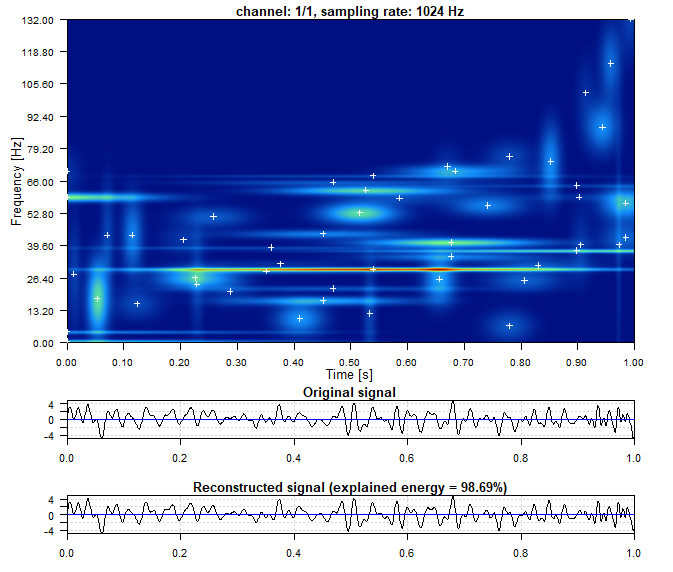

plot(out, channel = 1, freq_divide = 4)

EMPI

The EMPI tool must be first installed via empi_install() function. Then, the simplest way is to run the empi_execute() function. After the decomposition, the result can be visualized using plot() function.

sig_file <- system.file("extdata", "sample1.csv", package = "MatchingPursuit")
sig <- read_csv_signals(sig_file)

out <- empi_execute(
  signal = sig
)

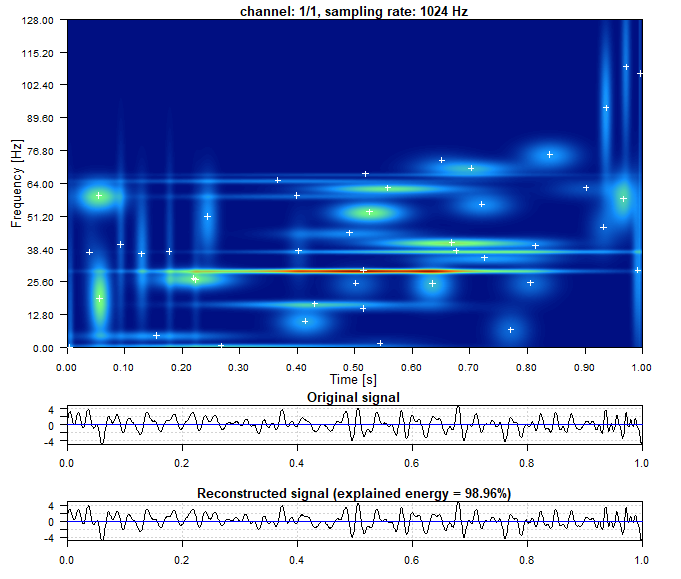

plot(out, channel = 1, freq_divide = 4)

Package architecture

The package contains three computational backends designed for different purposes.

Backend	Main functions	Purpose	Recommended use
EMPI	`empi_execute()`	Large datasets and production analyses	Optimized implementation
MP-R	`mp_core()`	Learning, debugging and experimentation	Reference implementation
OMP-R	`omp_core()`	Greedy sparse solver with orthogonal projections	Higher reconstruction accuracy

Notes:

The pure R implementation is intentionally included as a readable reference implementation. It follows the classical Matching Pursuit algorithm but is significantly slower than the optimized C++ implementation.
EMPI is a black-box optimized C++ implementation of Matching Pursuit. It performs dictionary construction, atom selection, and reconstruction internally.
Orthogonal Matching Pursuit extends the classical Matching Pursuit algorithm by recomputing coefficients using orthogonal projections, often yielding more accurate sparse approximations.
Unlike the MP-R/OMP-R workflow, which explicitly constructs a dictionary (read_gabor_dict()) and selects candidate atoms (topk_atoms()), EMPI performs these steps internally as part of a single optimized C++ pipeline.
As a result:

MP-R/OMP-R backends provides full transparency and control over each stage
EMPI backend provides significantly higher performance with minimal user overhead

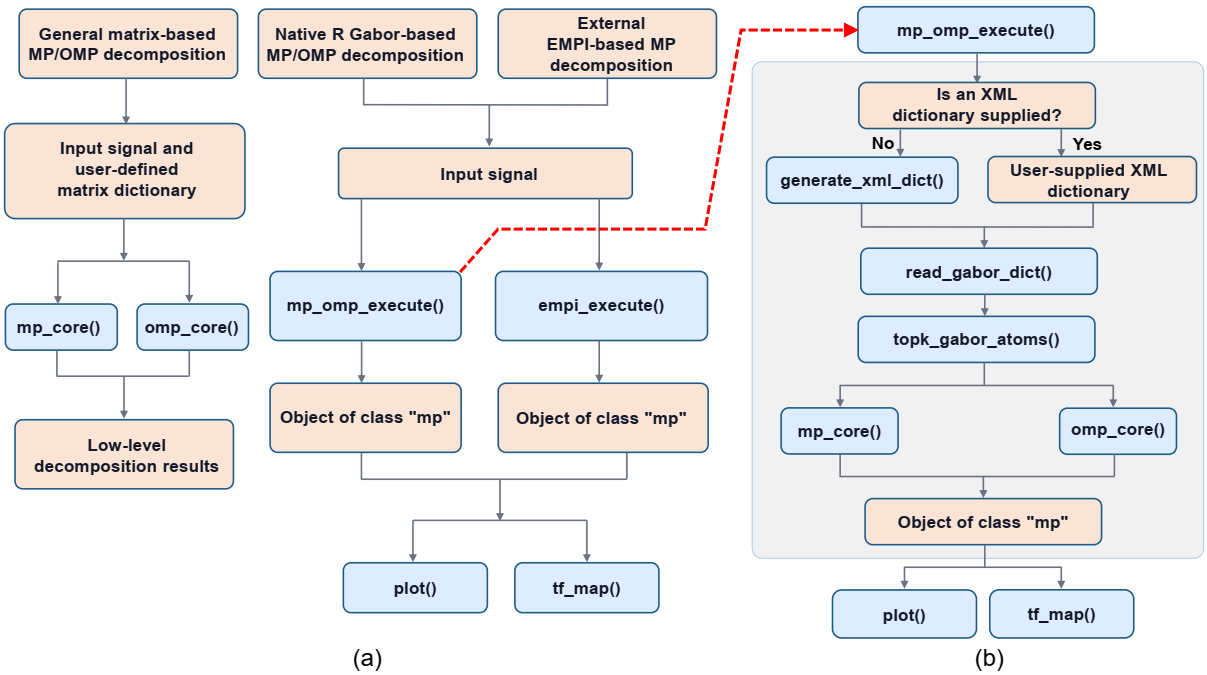

Typical workflow

                                       START
                                         |
                      -----------------------------------------
                      |                                       |
           MP-R / OMP-R workflow                         EMPI workflow
                      |                                       |
         ---------------------------                          |
         |                         |                          |
 mp_omp_pipeline()         read_*_signals()            read_*_signals()
         |                         │                          │
         |                 read_gabor_dict()                  |
         |                         │                          │
         |                   topk_atoms()                     │
         |                        │                           │
         |                 mp_omp_execute()             empi_execute()
         |                        |                           |
         --------------------------                           |
                     |                                        |
                     ------------------------------------------
                                          |
                                   plot() / tf_map()

read_*_signals() - select the appropriate function depending on the file format:
read_csv_signals(), read_edf_signals(), read_wfdb_signals()

Documentation

The package documentation includes:

Introduction vignette
Reference manual
Examples

Supported input formats

The package supports generic multichannel time-series together with commonly used biomedical formats:

CSV (generic signals)
EDF / EDF+ (EEG, ECG)
WFDB (physiological records)

License

GPL-3
